How Node.js Embeds Built-in JS Modules¶

Published: Wednesday, Feb 18, 2026 • 🏷️ node.js • til

TL;DR Node.js embeds many of its built-in JavaScript modules (the sources under lib/, including lib/internal/*) into the node executable as static C++ arrays. Since 2018, Node.js no longer compiles these sources from scratch at runtime - during the build process, the JavaScript is pre-compiled into a V8 code cache (bytecode + metadata), which is also embedded in the binary. At runtime, Node.js simply deserializes the bytecode from this cache, skipping the expensive parsing and compilation steps entirely.

Terminology note: here “built-in modules” means Node’s built-ins like fs/http (not the ECMAScript language built-ins like Array.prototype.map).

How the Embedding Works (Build Time)¶

Node’s build includes a step that converts JavaScript sources from lib/ into a generated C++ translation unit (commonly called node_javascript.cc in build artifacts). That generated C++ file is then compiled and linked into the final node executable.

V8 Code Cache: The Performance Key¶

Since 2018, Node.js doesn’t just embed the raw JavaScript source - it pre-compiles each built-in module into V8 bytecode during the build process. This cache is embedded alongside the source in the binary.

Why this matters: Before 2018, Node.js would parse and compile the embedded JavaScript at runtime. Now it simply deserializes pre-compiled bytecode, completely skipping those expensive steps.

Original	Since 2018: JS is pre-compiled to V8 bytecode at build time

Diagrams inspired by Joyee Cheung’s talk “Evolving the Node.js module loader” at JSConf JP 2025

This optimization was originally proposed by Yang Guo (a V8 engineer) and implemented by Joyee Cheung - the change that made Node.js startup noticeably faster.

At runtime: Node.js deserializes the cached bytecode directly. The raw source is kept primarily for debugging purposes and generating readable stack traces.

The converter is tools/js2c.cc.

Internal vs Public Modules¶

The BuiltinLoader distinguishes between two types of embedded modules:

1. Public modules (e.g., fs, http, crypto, os)

   • Can be loaded via require('fs') from user code
   • Exposed API surface

2. Internal modules (e.g., lib/internal/*)

   • Cannot be require()d from user applications
   • Used internally by Node.js core
   • Access restricted by the loader

Both types are embedded using the same js2c process, but runtime access rules differ.

How Node Loads an Embedded Module (Runtime)¶

Conceptually, when you do require('fs') (or require('node:fs')), Node detects that the request refers to a built-in module and asks the built-in loader for its source.

At a high level:

1. Node identifies the request as a built-in.
2. BuiltinLoader returns the module’s source from the embedded in-memory table (not from disk).
3. V8 deserializes the pre-compiled bytecode from the embedded code cache rather than parsing and compiling the source from scratch (Node wraps modules in a function like CommonJS modules).
4. Node executes it and caches the resulting module exports.

For a detailed, source-linked walkthrough of the real call chain, Joyee Cheung’s post in the references is the best starting point.

Embedding Benefits¶

1. Performance - Faster startup, no disk I/O for core modules
2. Distribution - Single binary is easier to distribute
3. Integrity - In the default build, core JS sources aren’t read from disk, so you can’t swap out lib/*.js without rebuilding
4. Self-Contained Runtime - No external dependencies needed for core functionality

Important Clarification¶

Embedding covers only JavaScript sources - Many built-ins like fs, crypto, and zlib also depend on native C/C++ code and bindings. Those native parts are compiled and linked separately; embedding doesn’t mean “everything is JS”.

Alternative builds - Node supports a build option that produces a binary without embedded JS files and loads them from a directory instead. See BUILDING.md.

References¶

• 2025 - Evolving the Node.js module loader (talk, slides) by Joyee Cheung
• 2021 - How does Node.js load its built-in/native modules? by Joyee Cheung
• Stack Overflow: Are JS files in node/lib used during compilation of the node executable?
• Node.js source:
  • node.gyp - Node’s top-level build configuration; it hooks the js2c-generated C++ into the final node executable (not to be confused with node-gyp, which builds native addons)
  • tools/js2c.cc
• node/BUILDING.md - Loading JS files from disk instead of embedding

  The resulting binary won’t include any JS files and will try to load them from the specified directory.

Appendix A - Node.js Built-in modules¶

• Ref: Node.js Doc - Built-in modules

Node.js has several modules compiled into the binary. …

The built-in modules are defined within the Node.js source and are located in the lib/ folder.

Built-in modules can be identified using the node: prefix, in which case it bypasses the require cache. For instance, require('node:http') will always return the built in HTTP module, even if there is require.cache entry by that name.

Some built-in modules are always preferentially loaded if their identifier is passed to require(). For instance, require('http') will always return the built-in HTTP module, even if there is a file by that name.

The list of all the built-in modules can be retrieved from module.builtinModules. The modules being all listed without the node: prefix, except those that mandate such prefix (as explained in the next section).

➜ # Print a clean list of all built-in module names
node -e "console.log(require('module').builtinModules)"
[
  '_http_agent',         '_http_client',        '_http_common',
  '_http_incoming',      '_http_outgoing',      '_http_server',
  '_stream_duplex',      '_stream_passthrough', '_stream_readable',
  '_stream_transform',   '_stream_wrap',        '_stream_writable',
  '_tls_common',         '_tls_wrap',           'assert',
  'assert/strict',       'async_hooks',         'buffer',
  'child_process',       'cluster',             'console',
  'constants',           'crypto',              'dgram',
  'diagnostics_channel', 'dns',                 'dns/promises',
  'domain',              'events',              'fs',
  'fs/promises',         'http',                'http2',
  'https',               'inspector',           'inspector/promises',
  'module',              'net',                 'os',
  'path',                'path/posix',          'path/win32',
  'perf_hooks',          'process',             'punycode',
  'querystring',         'readline',            'readline/promises',
  'repl',                'stream',              'stream/consumers',
  'stream/promises',     'stream/web',          'string_decoder',
  'sys',                 'timers',              'timers/promises',
  'tls',                 'trace_events',        'tty',
  'url',                 'util',                'util/types',
  'v8',                  'vm',                  'wasi',
  'worker_threads',      'zlib',                'node:sea',
  'node:sqlite',         'node:test',           'node:test/reporters'
]

Appendix B - Node.js Inspector¶

Because the JS is converted into byte arrays inside C++ source, you can’t realistically “read” it by opening the node binary in a text editor.

You can apply the “inspector” trick

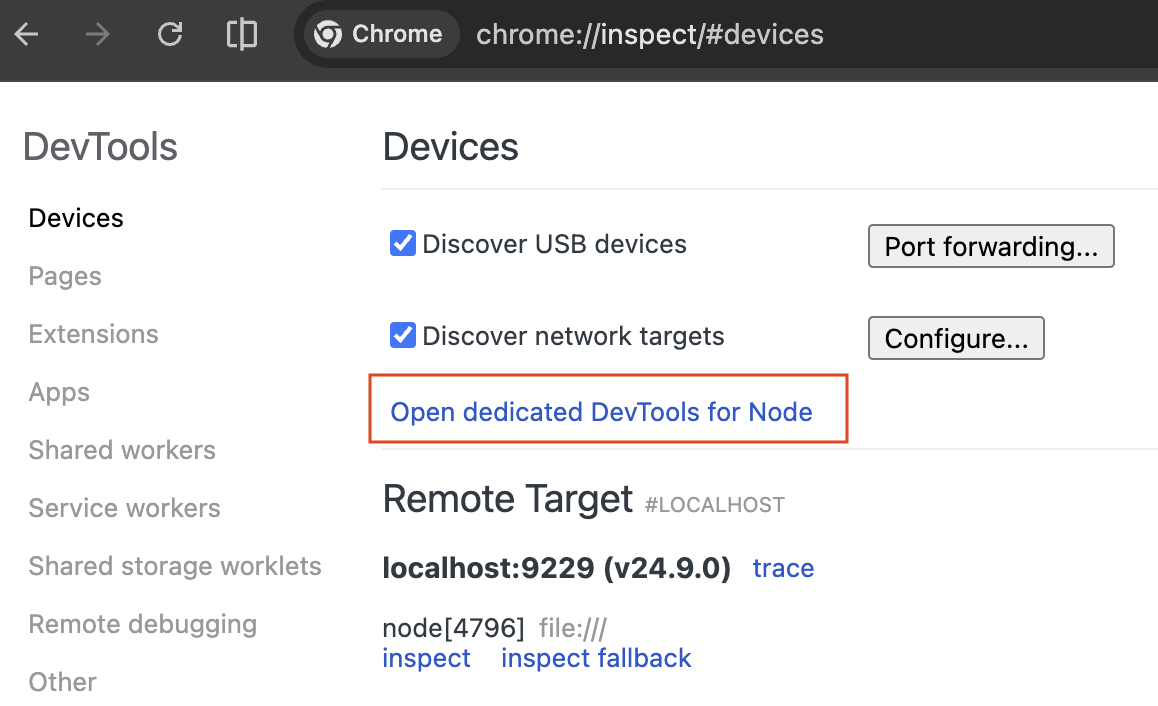

1. Run node --inspect.
2. Open Chrome and go to chrome://inspect.
3. Click “Open dedicated DevTools for Node”.
4. Go to the Sources tab.
5. Under “Node”, you will see a folder called node:internal.

Sample

node --inspect
Debugger listening on ws://127.0.0.1:9229/a5b189d2-6358-4fa9-9f71-7e82c835fff8
For help, see: https://nodejs.org/en/docs/inspector
Welcome to Node.js v24.9.0.
Type ".help" for more information.

Here you can inspect/read JS files embedded in the Node.js binary: both public and internal.
